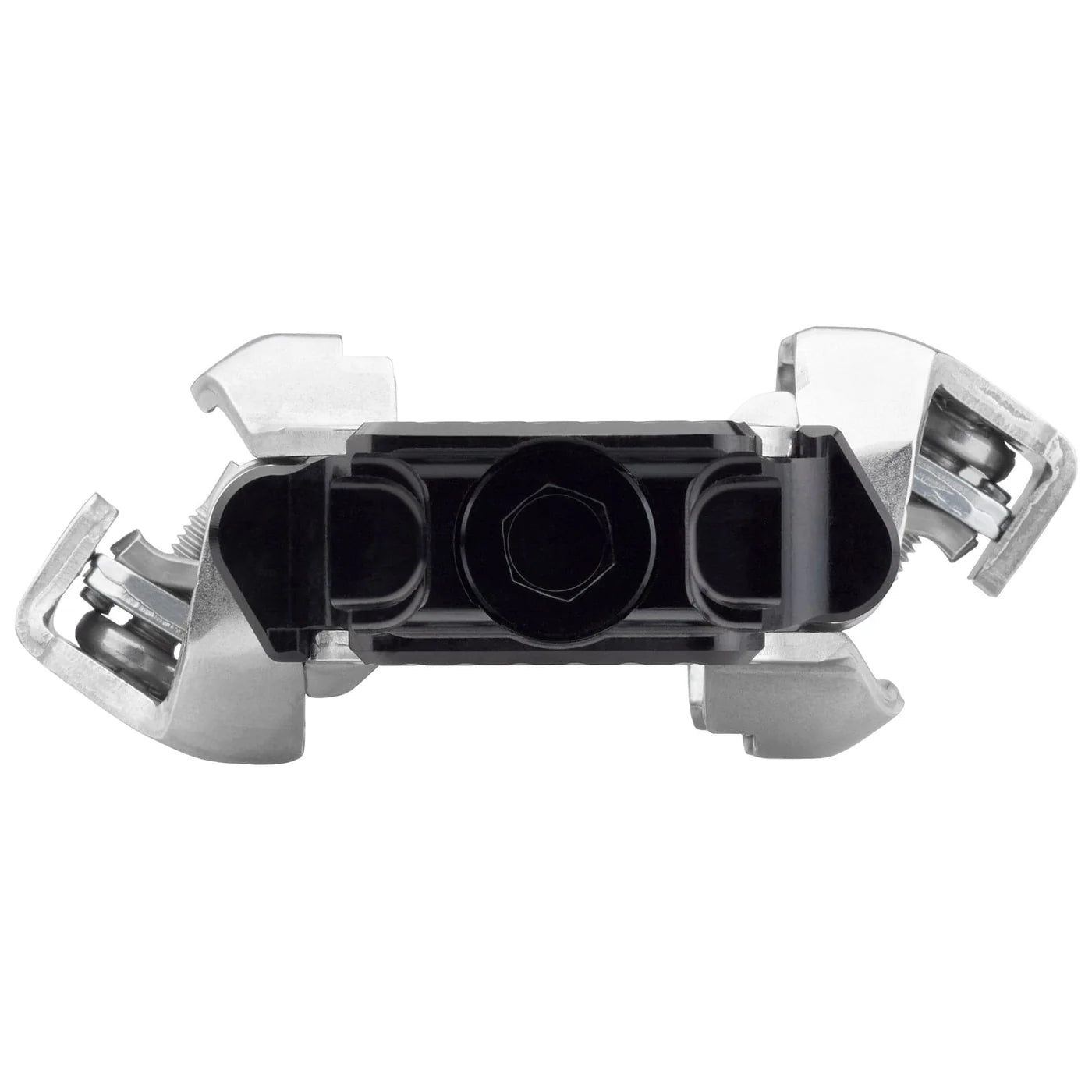

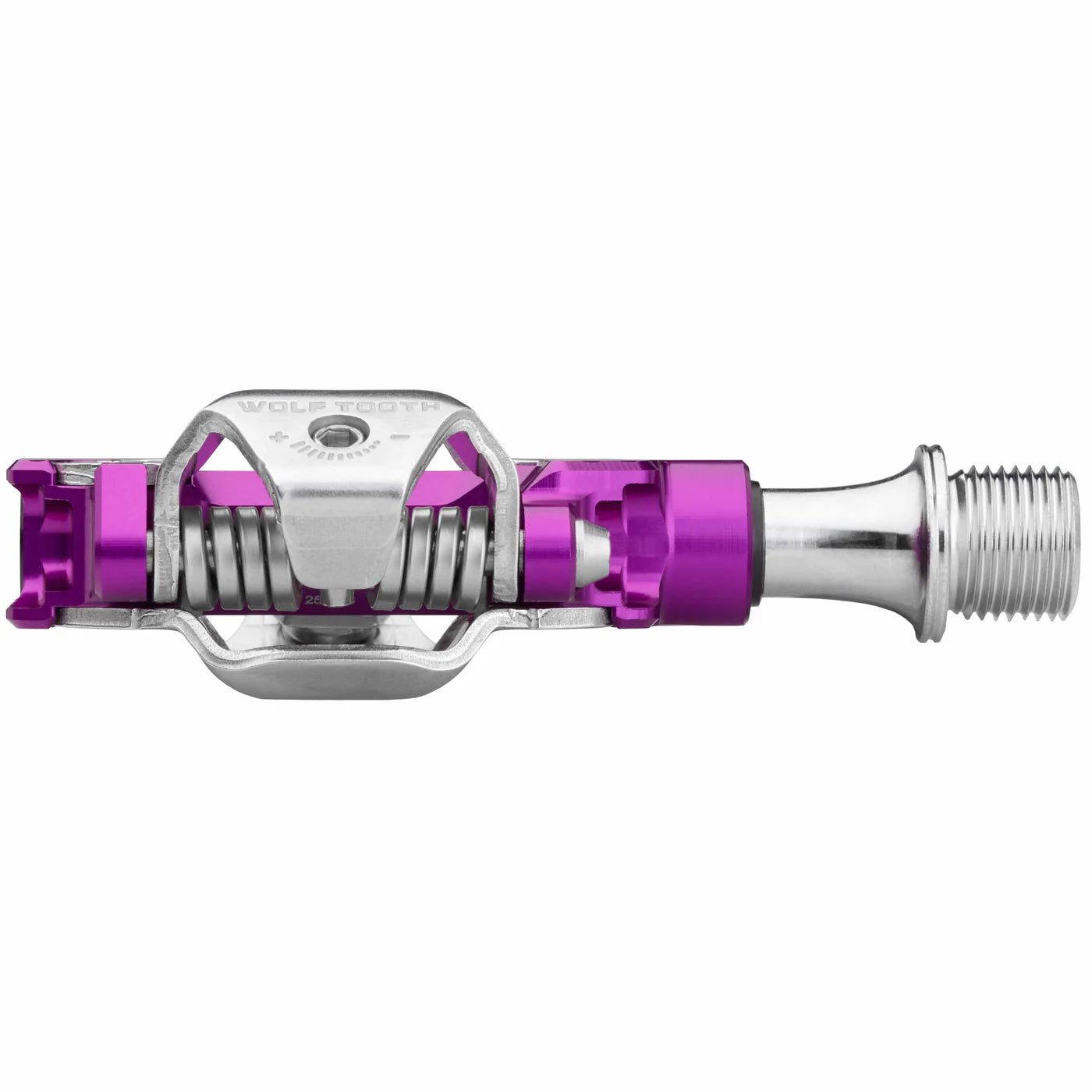

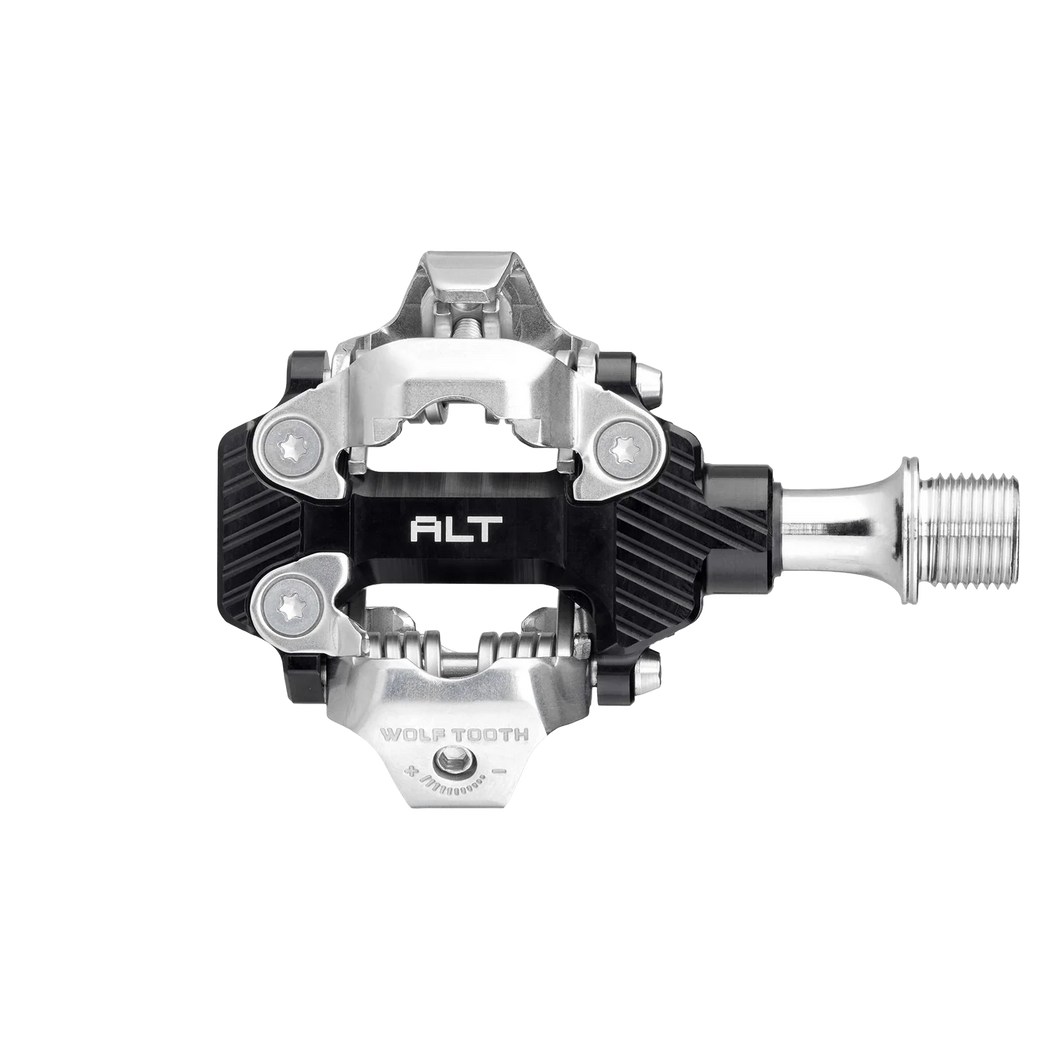

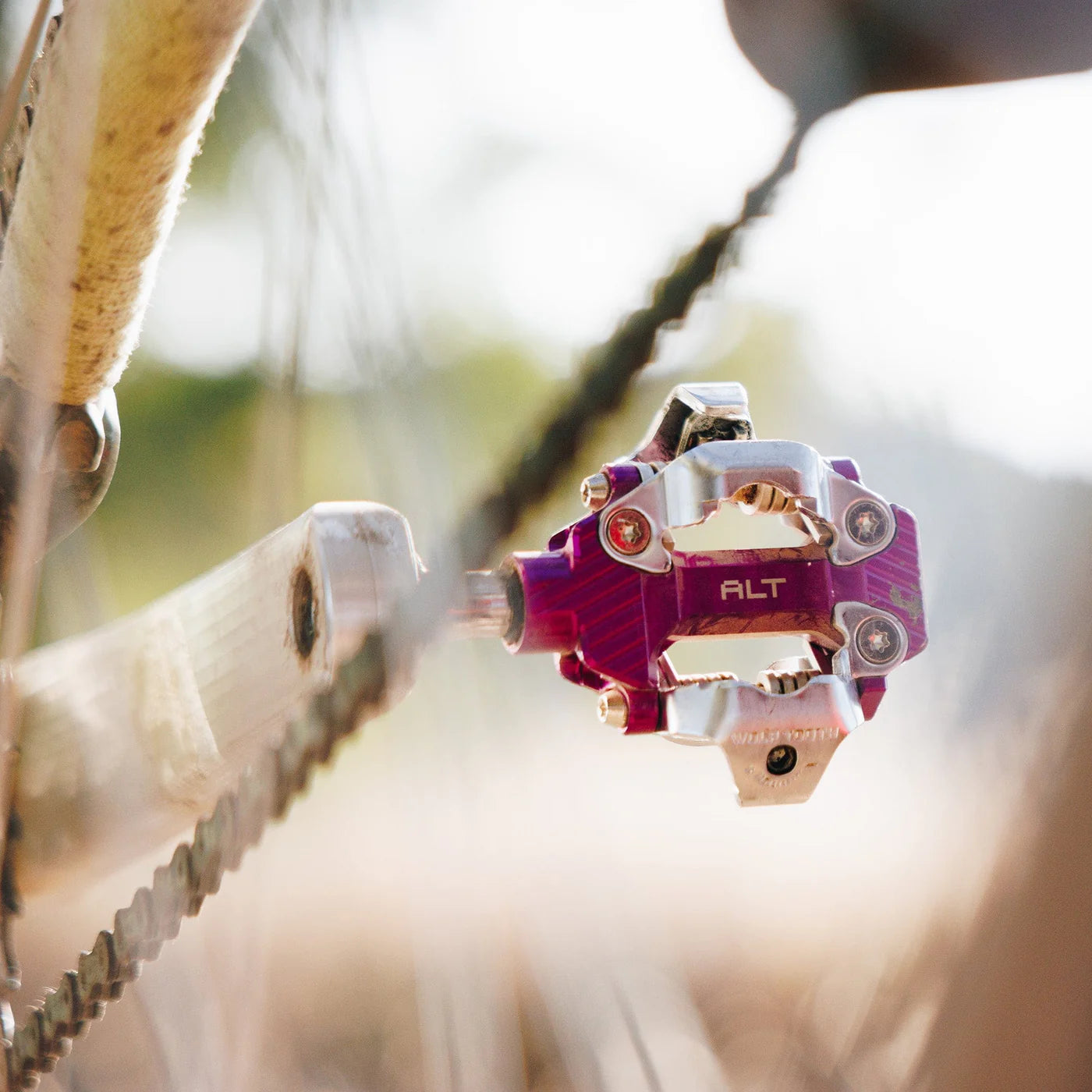

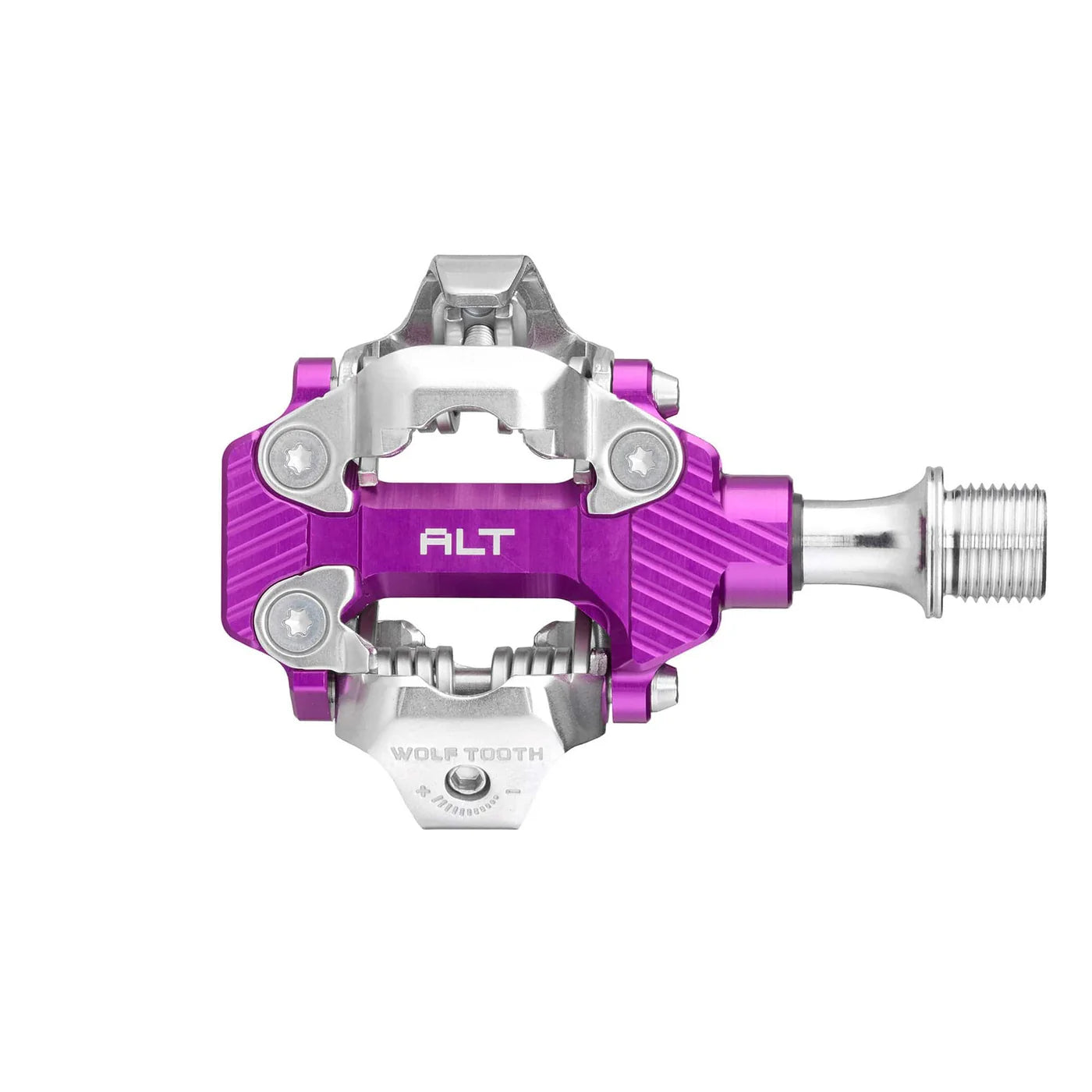

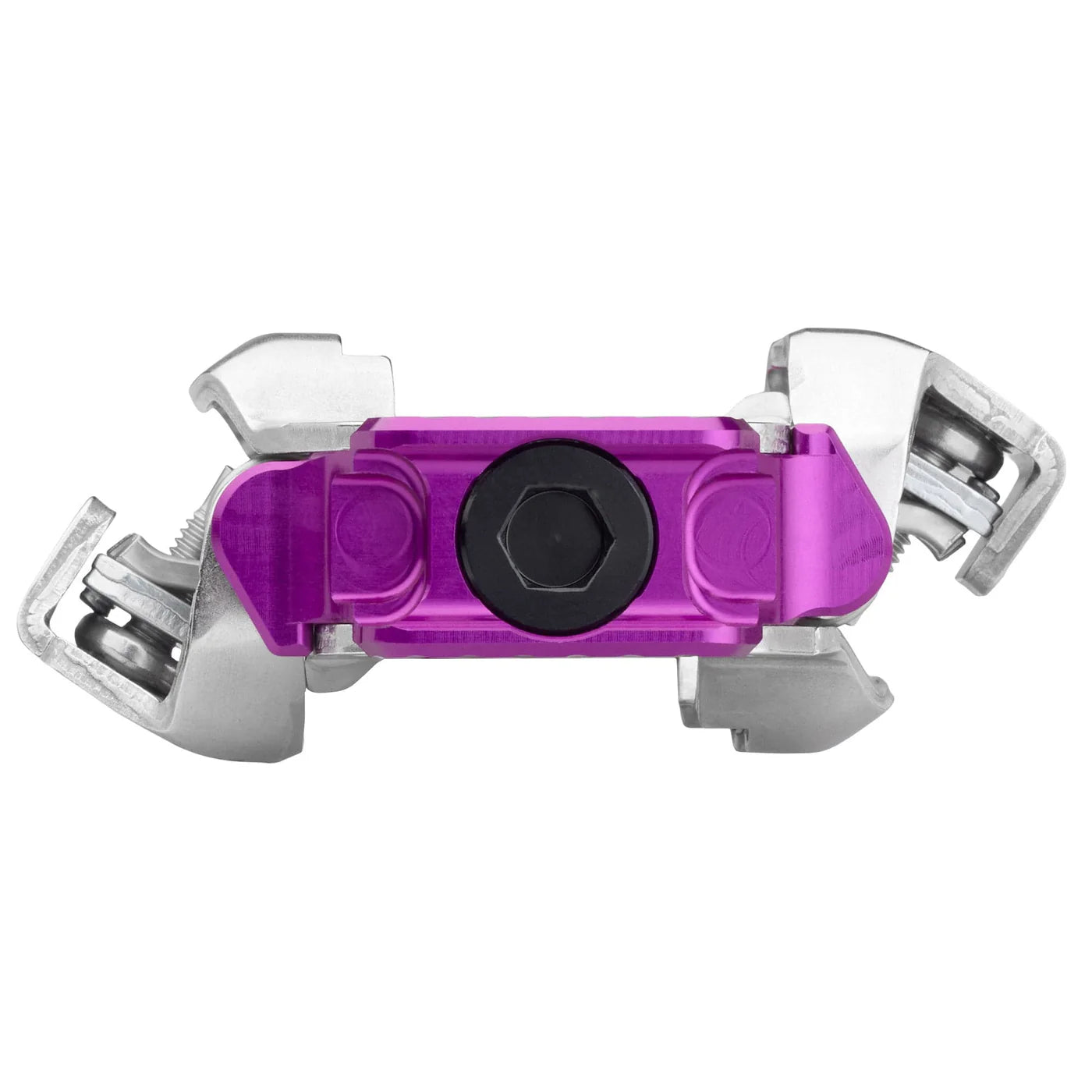

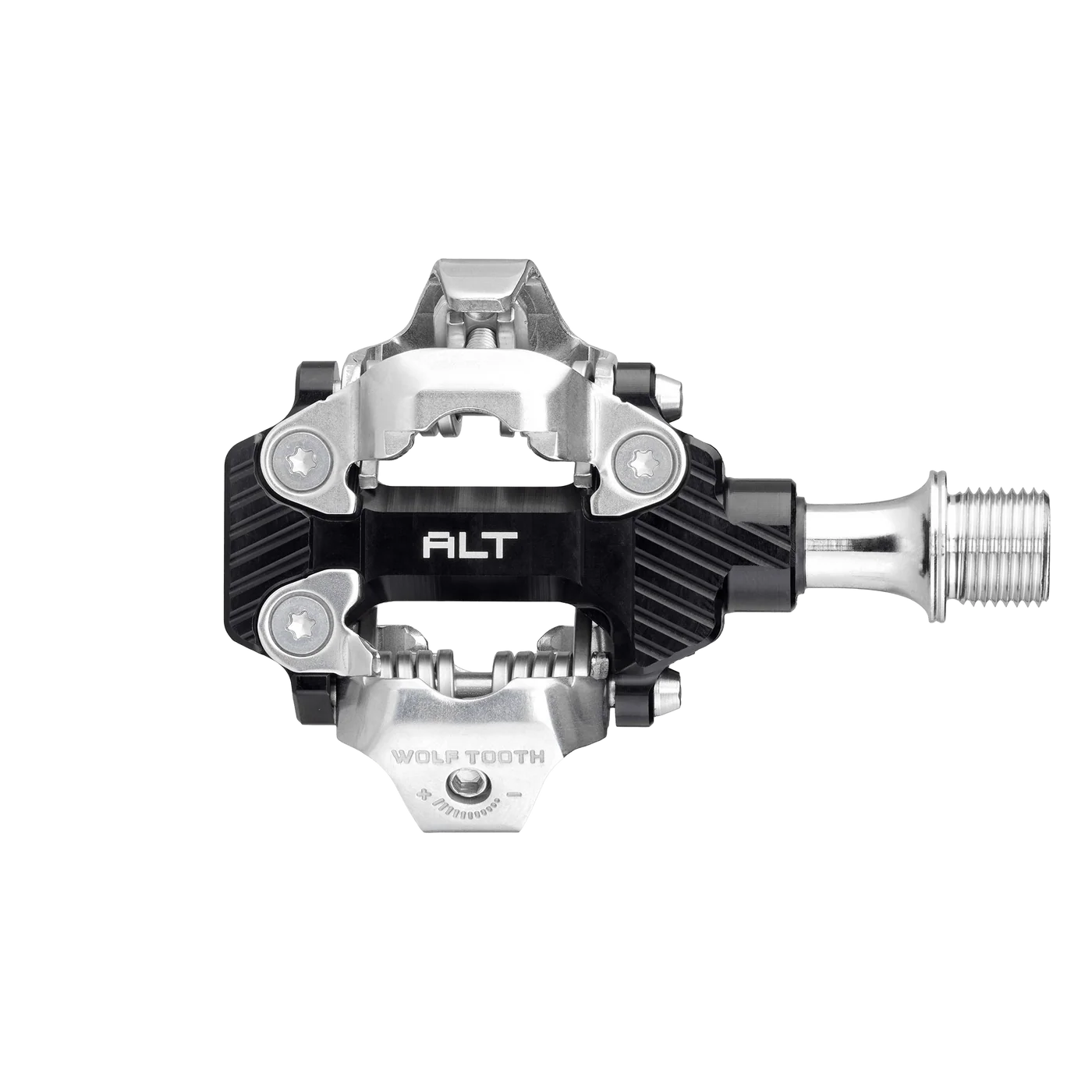

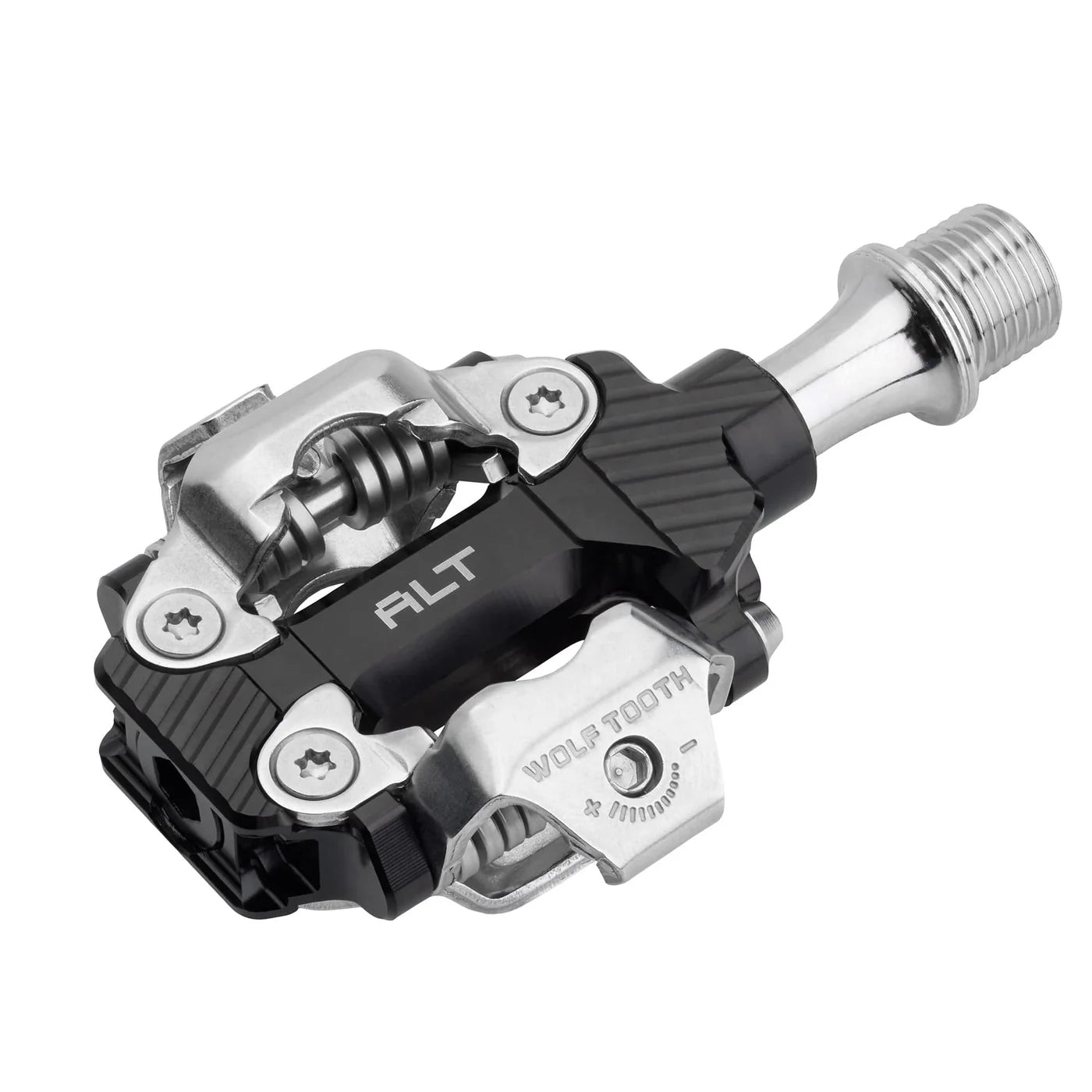

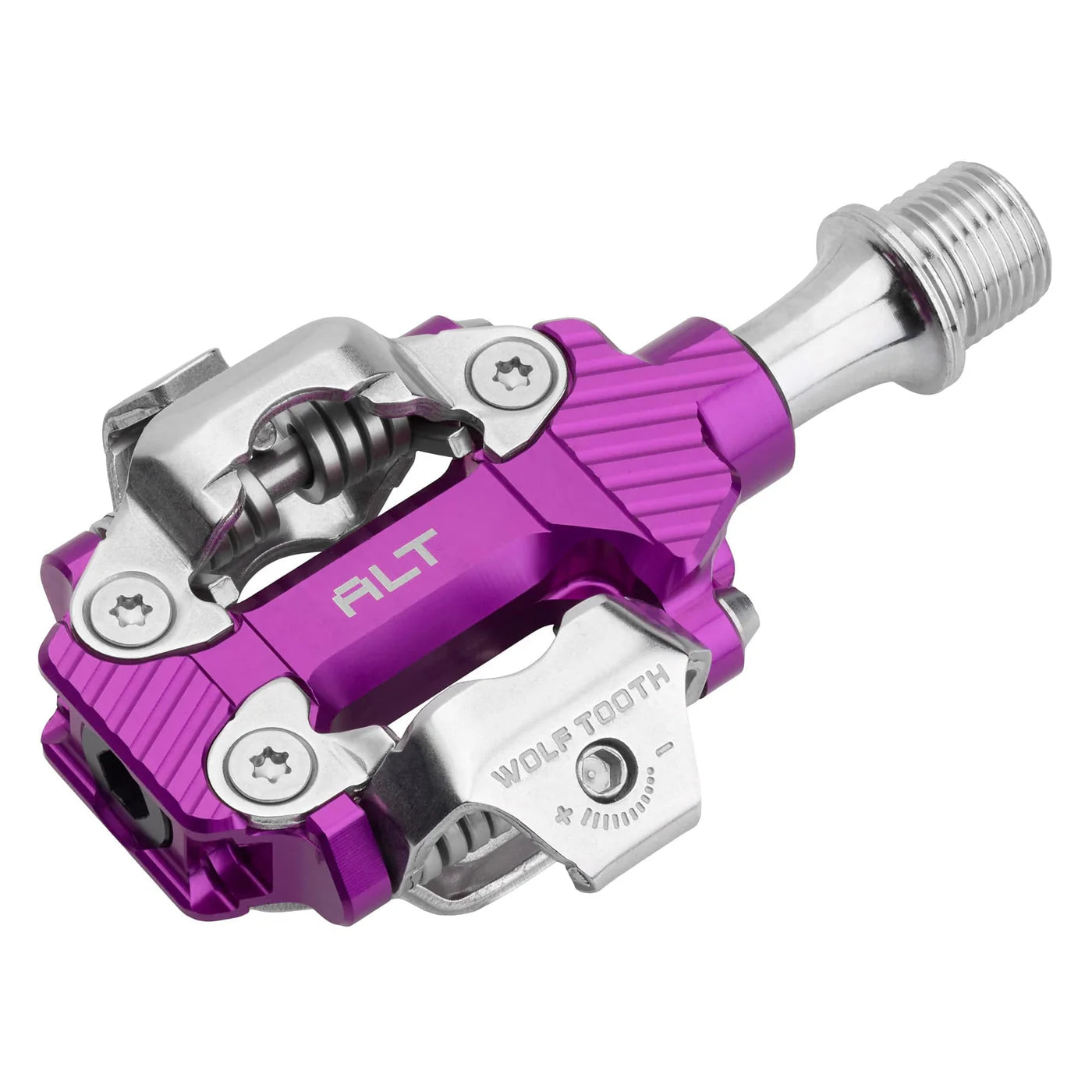

WOLF TOOTH ALT XC Clipless Pedal

Wolf Tooth ALT XC clipless pedals are designed for reliable performance on trails and gravel roads.

These pedals are lighter and thinner than comparable clipless pedals, with a very low stack height, while providing excellent control and power transfer thanks to their wider platform area.

The body design features a central opening for improved mud shedding compared to other clipless pedals.

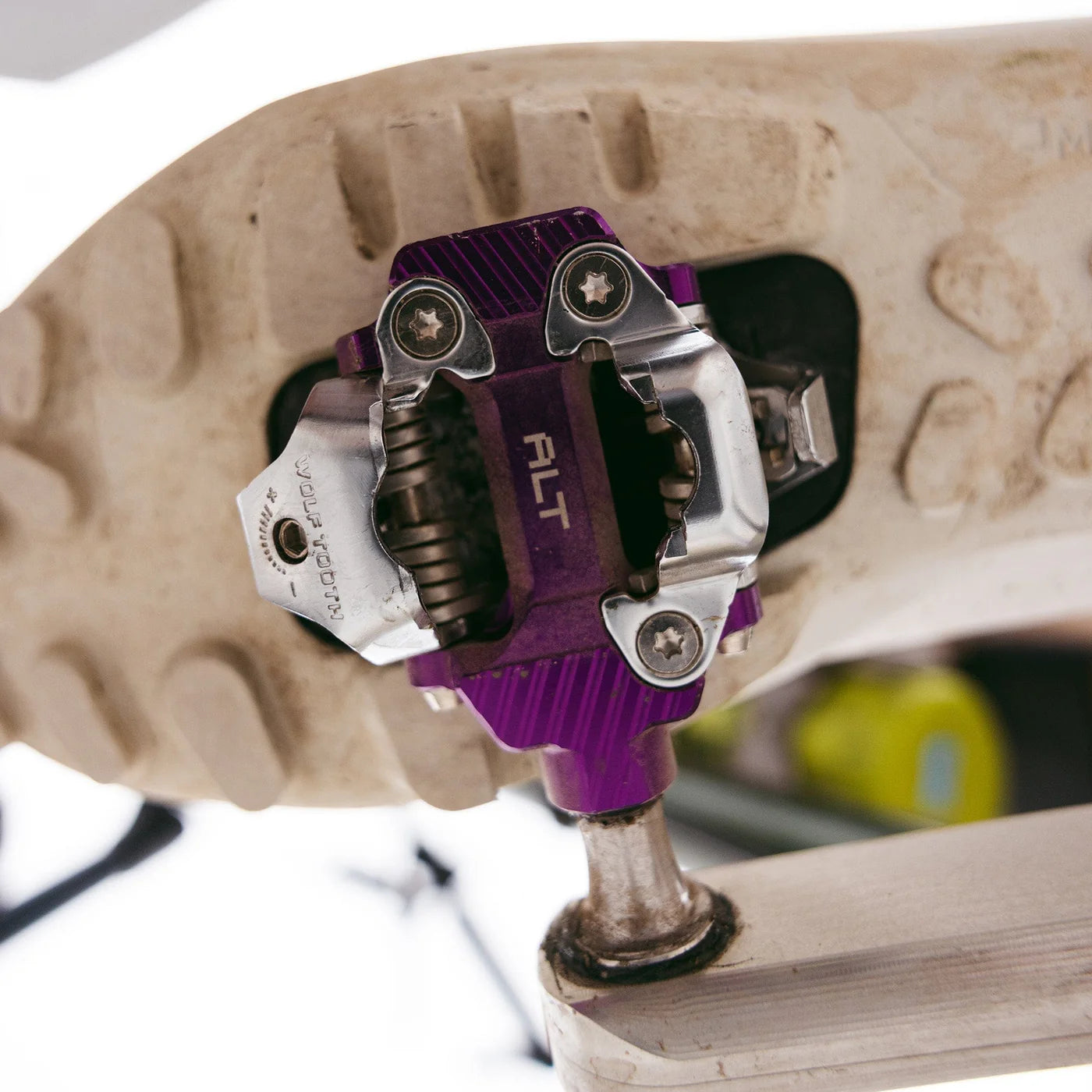

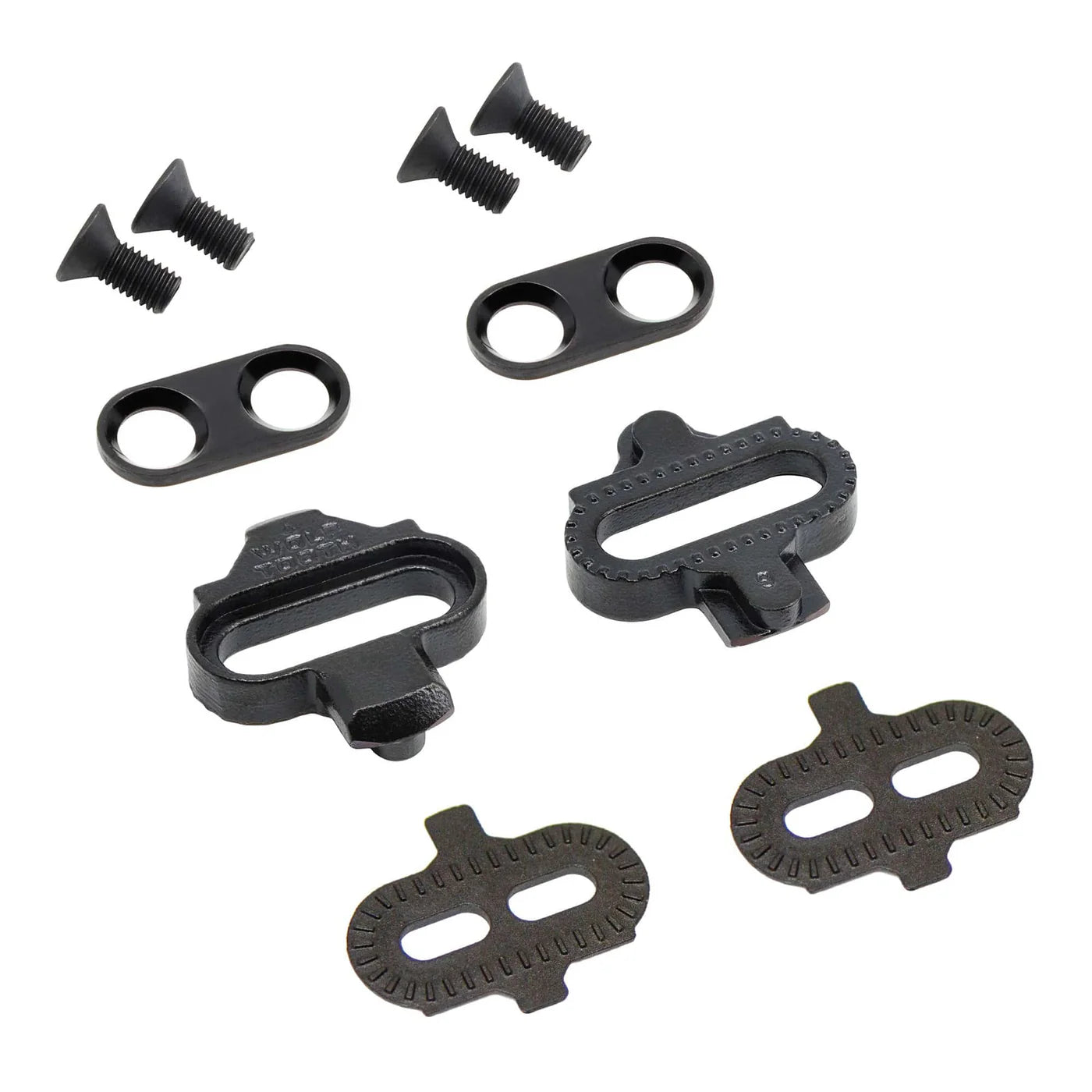

SPD-compatible clip-in/out operation is quick and precise, and Wolf Tooth cleats are included.

ALT XC clipless pedals feature a Q-factor adjustment mechanism with 4mm increments.

Inside the pedal are a stainless steel axle, three bearings, and two spacers.

By rearranging these spacers and bearings, the Q-factor can be set to 51mm, 55mm, or 59mm.

Additionally, a separate spacer kit containing four 2mm spacers is available for more precise Q-factor adjustments.

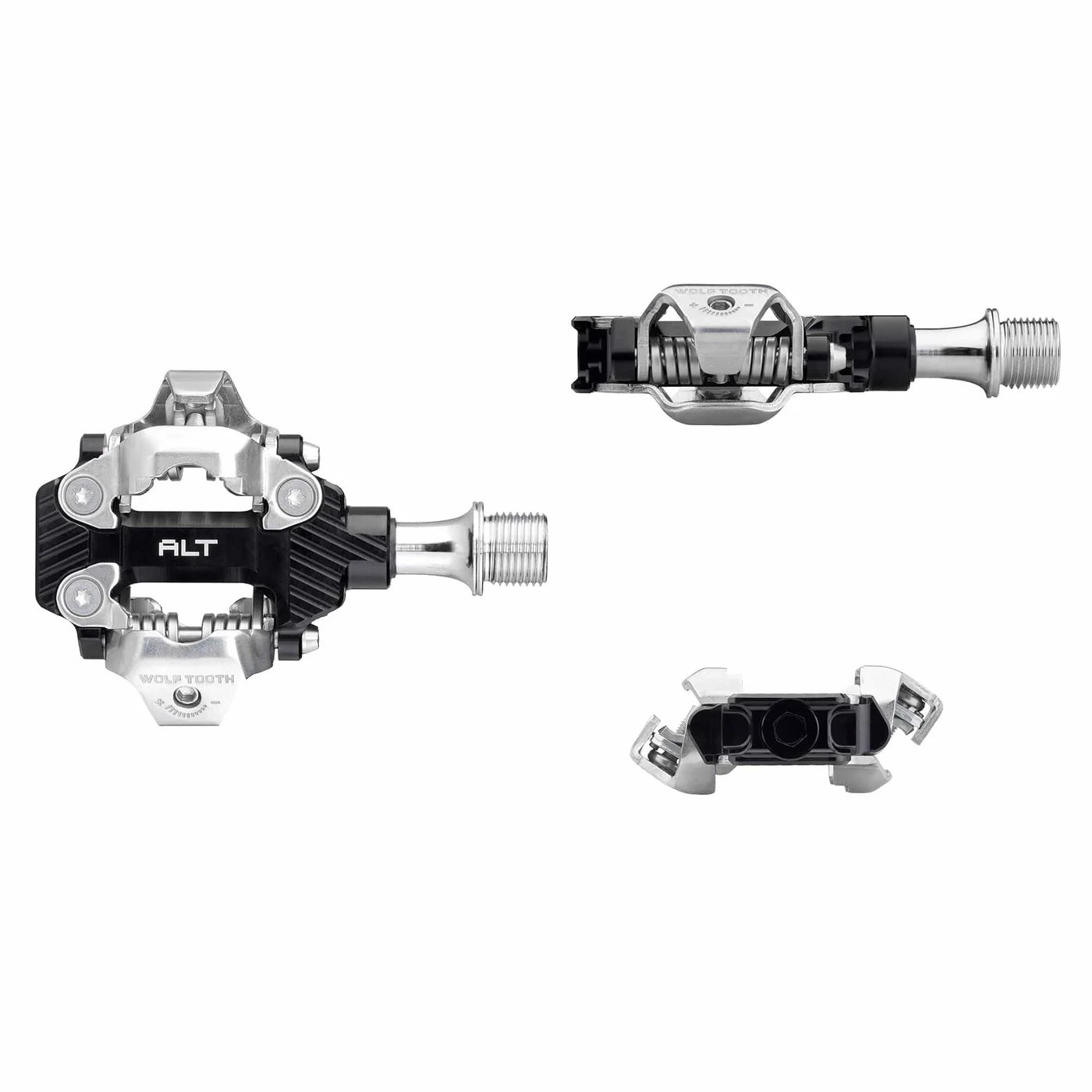

• Thickness (Stack Height) → 15mm
• Weight → 294g
• Platform Area → 345mm²
• Q-Factor Adjustment Range → 51mm / 55mm / 59mm
• Float Angle: 5 degrees
• Release Angle: 12 degrees
• SPD Compatible
• Utilizes the proven axle and bearing design from Waveform aluminum pedals

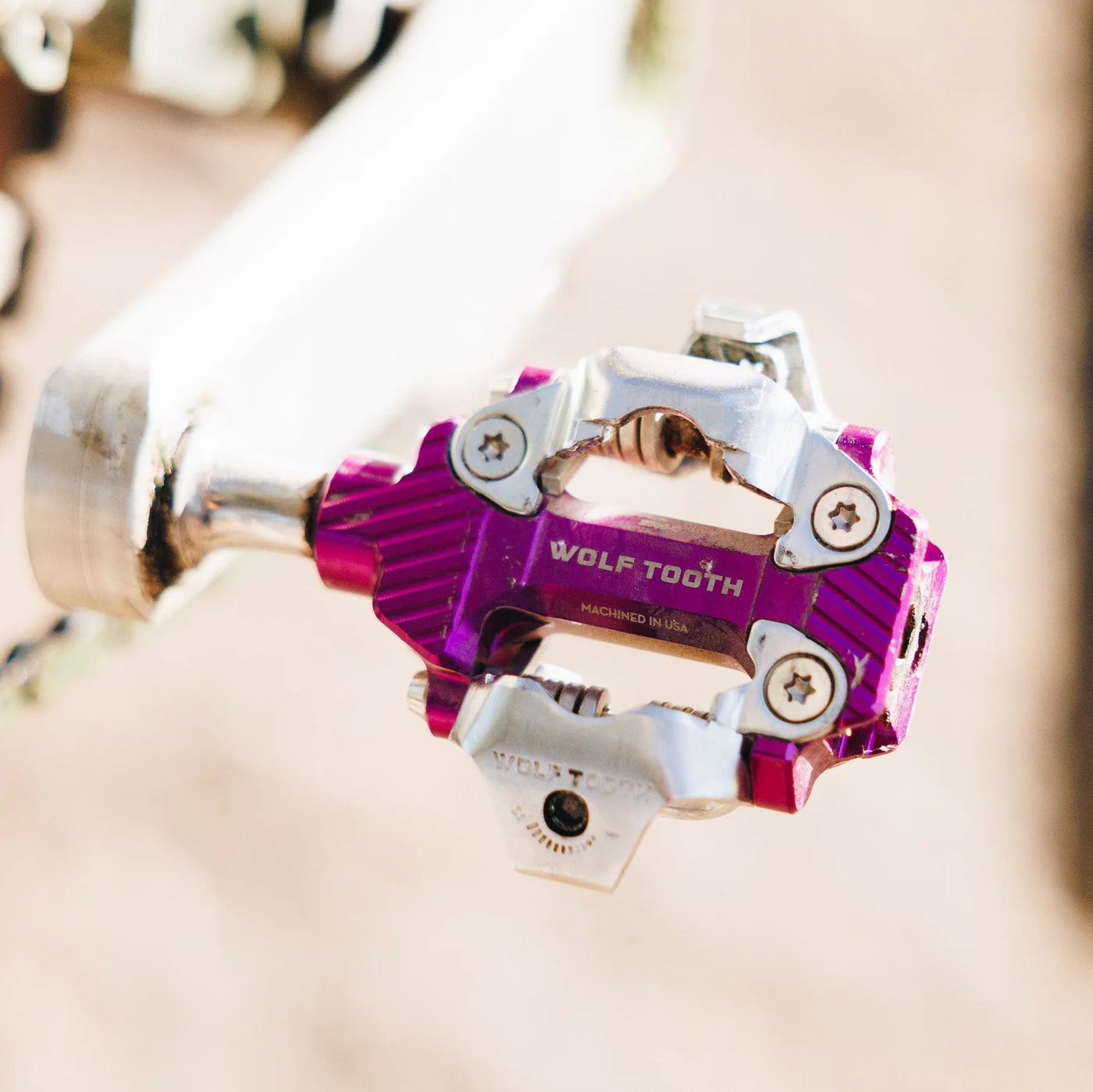

• Designed, tested, and machined at Wolf Tooth headquarters in Minnesota, USA
